Mochini oa Sejoale-joale o Etsang Lithibela o Ntlafatsa Mosebetsi oa Tlhahiso Joang?

Ke Litheknoloji life tsa Bohlokoa tse Tsamaisang Katleho Mochineng oa Sejoale-joale oa ho Etsa Li-block?

Phetoho ea ho tloha ho mechini e tloaelehileng ea li-block ho isa ho litsamaiso tsa sejoale-joale, tse itirisang ka botlalo e ipapisitse le ho kopana ha likhatelopele tsa boenjiniere. Feme ea rona e qetile lilemo e ntse e nchafatsa mahlale ana ho netefatsa hore mochini o mong le o mong o etsang li-block tsa QGM o fana ka melemo e lekantsoeng. Ka tlase re senya litšiea tsa mantlha tsa thekenoloji tse hlalosang tlhahiso bocha.

1. Mekhoa ea ho sisinyeha e phahameng ea maqhubu

Ho fapana le ho sisinyeha ha static kapa low-frequency, mechini ea sejoale-joale e sebelisa li-eccentric vibrators tse tsamaisoang ke servo tse hlahisang maqhubu a fetang 85 Hz. Sena se fihlella compaction ea hang-hang ka lintho tse fokolang tsa samente ha li ntse li boloka matla a phahameng a botala. Sephetho: li-blocks li ka pakoa kapele, ho fokotsa litlhoko tsa sebaka sa pheko le ho potlakisa ts'ebetso ka kakaretso. Fekthering ea rona, liparamente tsa vibrate lia fetoloa ka HMI, li lumella basebelisi ho chencha lipakeng tsa li-blocks tse tiileng, li-blocks le li-pavers ntle le ho nchafatsa mochini.

2. Mehaho e Koetsoeng ea Loop Hydraulic Architecture

Ho sebetsa hantle ha Hydraulic ho amana ka kotloloho le tšebeliso ea matla le lebelo la potoloho. Sistimi ea sejoale-joale e sebelisa li-valve tse lekanang, lipompo tse utloang mojaro, le li-circuit tsa accumulator tse fokotsang matla a sa sebetseng ka 35%. Mochini oa rona oa ho etsa li-block tsa QGM o kenyelletsa sistimi ea hydraulic ea lipompo tse peli e hokahanyang ho sisinyeha ha hlobo le matla a ho hatella, ho fokotsa linako tsa potoloho ho fihlela metsotsoana e 12-15 ka pallet e le 'ngoe bakeng sa li-blocks tse tloaelehileng.

3. Smart PLC e nang le IoT Readiness

Tšebelisano ea indasteri ea 4.0 e fetola data hore e be temohisiso e sebetsang. Sistimi ea rona e na le balaoli ba Nokia kapa Beckhoff ba hlokomelang li-parameter tsa nako ea nnete-ho sisinyeha amplitude, mocheso oa oli ea hydraulic, mongobo o tala - le ho ikamahanya le maemo ho boloka botsitso. Litlhahlobo tse hole li lumella sehlopha sa rona sa lits'ebeletso ho qoba liphoso, ho etsa bonnete ba hore nako e lula e le kaholimo ho 95% esita le ts'ebetsong ea 24/7.

4. Modular Mold & Quick-Change Systems

Nako ea ho phomola pakeng tsa liphetoho tsa lihlahisoa e bolaea katleho. Mechini e tsoetseng pele e kenyelletsa hydraulic hlobo clamping ka mekhoa ea ho tsoa kapele. Ho fetoha ho tloha bolokong ba 6-inch ho ea ho 8-inch block ho nka nako e ka tlase ho metsotso e 8 ha ho bapisoa le liphetoho tsa matsoho tsa metsotso e 45. Ho feto-fetoha ha maemo ho matlafatsa bahlahisi ho tsamaisa libache tse nyane ntle le ho tela OEE (Katleho ea Kakaretso ea Thepa).

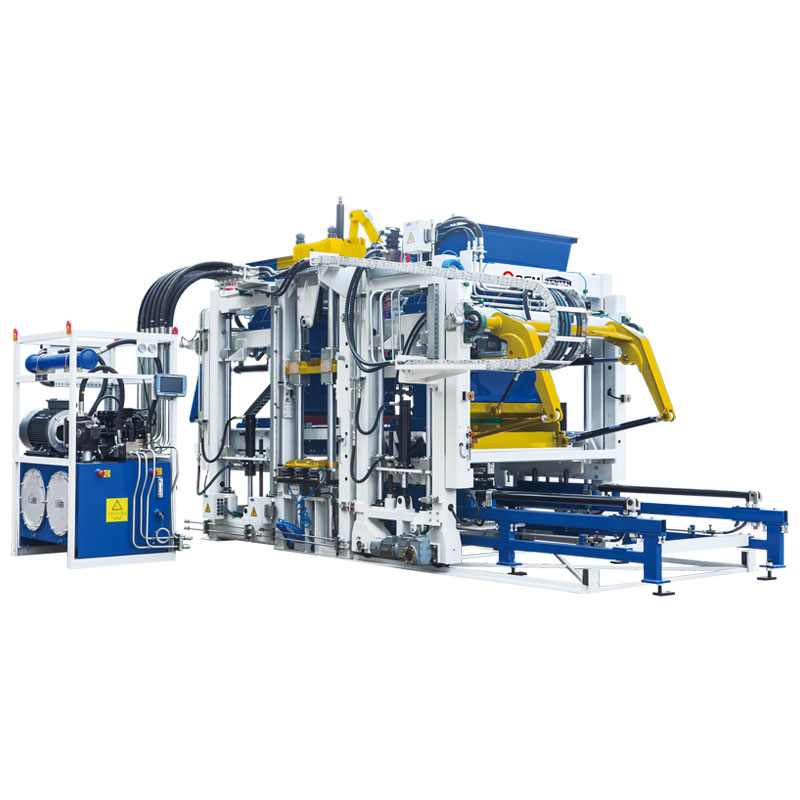

Ho hlakisa bophahamo ba theknoloji, mona ke lintlha tse qaqileng tsa letoto la mochini o etsang li-block tsa QGM block. Litlhaloso tsena ke litholoana tsa lilemo tse fetang mashome a mabeli tsa data ea tšimo le R&D e tsoelang pele hoQuangong Machinery Co., Ltd.

Lipalo tsena ha se tsa khopolo-taba feela. Fekthering ea rona, re etsa liteko tse matla tsa mamello ho netefatsa hore mochini o mong le o mong o etsang li-block tsa QGM o fana ka ts'ebetso e ts'oanang le libakeng tse batloang haholo. Ka ho kopanya mekhoa ena ea theknoloji, bahlahisi ba atisa ho fokotsa litšenyehelo tsa motlakase ka 22% le litšenyehelo tsa basebetsi ka hoo e ka bang 50% ha li bapisoa le mekhoa e meng ea semi-automatic.

Mokhoa oa ho iketsetsa le oa Cycle Time Optimization o eketsa tlhahiso joang?

Nako ea potoloho - nako ea ho tloha ho fepa ka thepa e tala ho ea ho ejection e felileng - ke ho otla ha pelo ea katleho ea tlhahiso. Mechini ea sejoale-joale e etsang li-block e sebelisa liketane tse ikemetseng tse hokahanyang ts'ebetso e 'ngoe le e' ngoe, ho felisa ho kenella ka letsoho le ho fokotsa linako tse sa sebetseng. Boiphihlelo ba rona ho Quangong Machinery Co., Ltd. bo bonts'a hore sistimi e ikemetseng e ntlafalitsoeng hantle e ka eketsa tlhahiso ka 70% ha e bapisoa le mela ea matsoho kapa ea semi-automatic, ha ka nako e ts'oanang e ntlafatsa ho tšoana ha sehlahisoa.

End-to-End Automation Architecture

Ho sebetsa hantle ha 'nete ho tsoa ho mokhoa o akaretsang. Litsamaiso tsa rona li kenyelletsa:

• Ho kopanya le ho kopanya ka bohona:Li-sensor tsa boima ba 'mele le li-probe tsa mongobo li netefatsa hore motsoako o tsitsitse pele lintho li kena mochining, ho fokotsa ho hana.
• Phatlalatso ea pallet e tsamaisoang ke PLC:Li-conveyors tse laoloang ke servo li hokahana le mochini o ka sehloohong, li netefatsa hore ho na le nako ea ho ema pakeng tsa li-cycle.
• Ho hlobolisa lera la liroboto:Ts'ebetso ea morao-rao ea tlhahiso e etsoa ka boiketsetso, e lumellang mochini o etsang li-block hore o sebetse ka mokhoa o tsoelang pele ntle le tieho ea forklift.
• Phepelo ea lintho tse boletsoeng esale pele:Tlhokomelo ea tšebeliso ea nako ea 'nete e etsa hore motho a tlatsoe ka boits'oaro ho li-silo, ho thibela tlala.

Feme ea rona e rala mohala o mong le o mong oa tlhahiso joalo ka tikoloho e kopaneng. AMochini oa ho etsa li-block tsa QGMe kopanya ka mokhoa o ts'oanelang le mekhoa ea li-racks tsa ho phekola ka mokhoa o ikemetseng le melapo ea ho paka, ho bolelang hore le ha ho etsoa lihlahisoa tse rarahaneng tse kang li-pavers tse pota-potiloeng, kakaretso ea lihlahisoa e lula e le holimo.

Phokotso ea nako ea potoloho ka ts'ebetso e ts'oanang

Mechini ea setso e sebetsa ka tatellano: fepa, thothomela, tobetsa, eject, ebe u emela ho khutla ha pallet. Leha ho le joalo, lisebelisoa tsa morao-rao li tsamaisana le ts'ebetso. Ha mochine oa khatiso o ka sehloohong o kopanya sehlopha, se fepa se se se ntse se kopanya motsoako o latelang, 'me mohlokomeli oa pallet o lokisa boto e latelang. Sena se fokotsa nako e sebetsang ea potoloho ka 40%. Ka tlase ke karohano ea ntlafatso ea potoloho:

• Ho tjhaja thepa e tala: 3 sec (automated volumetric dosing)
• Vibration & compaction: 5-7 sec (servo-controlled amplitude modulation)
• Ho hatella le ho tšoara Hydraulic: 2 sec (li-valve tse lekanang tse sebetsang ka potlako)
• Ho hlobola le ho tsoa ka pallet: metsotsoana e 2 (e hokahantsoe le conveyor)
• Kakaretso ea potoloho ea komello:metsotsoana e 12–16 (ho kenyeletsoa le likhokahano tsa polokeho)

Ho feta moo, mechini ea sejoale-joale e kenyelletsa litlolo tsa mefuta e mengata. Mochini oa rona oa ho etsa li-block tsa QGM o ka boloka litlolo tsa lihlahisoa tse ka bang 200, o nolofalletsa basebelisi ho chencha lipakeng tsa li-blocks tse se nang letho, li-blocks tse tiileng le majoe a thibang ka metsotsoana ntle le liphetoho tsa mochini. Agility ena e fokotsa nako ea ho theoha 'me e lumella tlhahiso ea nako feela, ho fokotsa litšenyehelo tsa thepa.

Ho Zenith, re kentse tšebetsong li-dashboard tsa Industry 4.0 tse fanang ka litekanyetso tsa OEE (Kakaretso ea Katleho ea Lisebelisoa). Hangata bareki ba tlaleha hore ka mor'a ho ntlafatsa mekhoa ea rona ea ho iketsetsa ka ho feletseng, tlhahiso ea bona ea phetoho e eketsehile ho tloha ho li-block tsa 6,000 ho ea ho li-block tsa 15,000 tse nang le basebetsi ba tšoanang. Motsoako oa linako tse fokotsehileng tsa nako ea potoloho, phoso e fokolitsoeng ea motho, le ts'ebetso e tsoelang pele e etsa hore automation e be eona e kenyang letsoho ka ho fetisisa molemong oa tlhahiso ea sejoale-joale.

Hobaneng ha Moralo oa Sisteme ea Hydraulic e le ea Bohlokoa bakeng sa ho tsitsa ha Tlhahiso?

Li-Hydraulics ke mesifa ea mochini ofe kapa ofe o etsang li-block, empa litsamaiso tse sa sebetseng hantle li lebisa tšenyong ea matla, ho kopana ho sa tsitsang, le ho koaloa ha tlhokomelo khafetsa. Ka lehlakoreng le leng, potoloho ea hydraulic e entsoeng ka mokhoa o nepahetseng e tiisa hore sebaka se seng le se seng se fumana matla a tšoanang a khatello, ho sa tsotellehe lebelo la tlhahiso kapa maemo a tikoloho. Ka lilemo tse mashome a mabeli, feme ea rona e ntlafalitse meralo ea hydraulic ho fihlela botsitso bo etelletseng pele indastering le ho ts'epahala. Mona ke ka lebaka leo e leng bohlokoa bakeng sa katleho.

Matla a Matla le Taolo ea Mocheso

Sistimi e tloaelehileng ea hydraulic e sebetsa lipompong tse sa fetoheng, tse bakang tahlehelo ea matla nakong ea ho se sebetse. Mochini oa sejoale-joale oa ho etsa li-block tsa QGM o sebelisa lipompo tsa axial piston tse feto-fetohang tse kopantsoeng le theknoloji ea ho utloa meroalo. Sena se fokotsa tšebeliso ea matla ka 38% ha e bapisoa le mefuta ea khale. Ho feta moo, li-coolers tse matla haholo tse nang le taolo ea thermostatic li boloka mocheso o sebetsang pakeng tsa 45-55 ° C, li boloka bophelo ba tiiso le viscosity ea oli. Ho hlahisa mocheso o tlase ho boetse ho fokotsa matla a ho pholisa, ho theha phaello e sebetsang hantle.

Precision Compaction = Litefiso tse tlaase tsa ho hana

Tekanyo e tsitsitseng ea block le ho nepahala ha dimensional li ipapisitse le khatello e phetoang ea hydraulic. Sistimi ea rona ea ho hatisa li-cylinder tse peli e sebetsa ho fihla ho 25 MPa e nang le maikutlo a boemo (li-linear transducer) tse netefatsang hore punch e kaholimo e ema ka bophahamo bo lekanang hantle potolohong e ngoe le e ngoe. Sena se felisa ho fapana ha bophahamo ba li-block le ho fokotsa litšila. Hana litefiso tsa libaka tse tloaelehileng li theoha ho tloha ho 3-5% ho ea tlase ho 0.8% ka mor'a ho amohela tsamaiso ea rona ea hydraulic.

Moqapi oa Tlhokomelo

Nako ea ho phomola bakeng sa litokiso tsa hydraulic e ka sitisa tlhahiso. Meralo ea rona e kenyelletsa mefuta e mengata e fumanehang habonolo, likou tsa liteko tse potlakileng, le likarolo tse thibelang tšoaetso (ISO 4406 class 18/16/13). Re boetse re fana ka litlhokomeliso tsa tlhokomelo e boletsoeng esale pele-ha khatello ea filthara e phahama, sistimi ea taolo e tsebisa basebelisi. Fekthering ea rona, re leka yuniti e 'ngoe le e' ngoe ea matla a haeteroliki bakeng sa lihora tse 72 tlasa mojaro o etsisitsoeng ho netefatsa ts'ebetso e sa luleng. Bareki ba rona ba tlaleha hore nako ea ho theoha e amanang le hydraulic e nka nako e ka tlase ho 1% ea kakaretso ea nako ea tlhahiso selemo le selemo.

Bakeng sa papiso e potlakileng, mona ke ho sheba lintlha tsa bohlokoa tsa hydraulic ho pholletsa le meloko ea mochini:

• Mochini oa setso: Pompo e tsitsitseng, potoloho ea khatello e le 'ngoe, 12-15 MPa, 45 sec cycle, 55 kWh/ton
• Mochini oa sejoale-joale oa ho etsa li-block tsa QGM: pompo e utloang meroalo, potoloho ea khatello e habeli, ho fihla ho 25 MPa, 14 sec cycle, 32 kWh/ton

Ka tsoelo-pele ena, bahlahisi ba finyella eseng feela tlhahiso e phahameng empa hape le phokotso e kholo ea litšenyehelo tsa ts'ebetso. Ke papiso e hlakileng ea kamoo hydraulic sophistication e fetolelang ka kotloloho molemong oa phaello.

Ke Melemo efe ea Melemo ea Katleho ka Lits'ebetso tsa Smart Control?

Mehleng ea tlhahiso e bohlale, mochini o etsang li-block o se nang taolo e bohlale o tšoana le smartphone e se nang lisebelisoa-e sebetsa empa e hole le ho feta. Ho Quangong Machinery Co., Ltd., re kentse balaoli ba bohlale ba etsang ho fetang feela ho tsamaisa tatelano; ba sekaseka, ba feto-fetole le ho bolela esale pele. Karolo ena e lekanya melemo ea katleho e fanoeng ke meralo ea rona ea taolo e tsoetseng pele, e tšehelitsoeng ke data ea 'nete e tsoang litsing tsa lefats'e ka bophara.

Tokiso ea Nako ea 'Nete ea Adaptive

Mochini oa rona oa ho etsa li-block tsa QGM o sebelisa algorithm e thusitsoeng ke AI e lekola maqhubu a vibrate, khatello ea hydraulic le mongobo oa thepa ka nako ea nnete. Haeba motsoako o le mongobo hanyane ka lebaka la boemo ba leholimo, sistimi e fetola nako ea ho sisinyeha ka bo eona ho boloka compaction e phethahetseng. Mokhoa ona o ikamahanyang le maemo o tiisa matla a thibelang a tsitsitseng (ka tloaelo 10-15% matla a C28 a phahameng) le ho fokotsa tšebeliso e feteletseng ea samente. Hangata bareki ba boloka 8–12% ditjehong tsa thepa e tala nakong ya dikgwedi tse tharo tsa pele.

Remote Monitoring & Centralized Fleet Management

Ho sebetsa hantle ho boetse ho bakoa ke ho fokotseha ha nako. Sethala sa rona sa iQGM se thehiloeng marung se lumella batsamaisi ba limela hore ba shebe li-KPI tsa tlhahiso-tse kang lipotoloho ka hora, tšebeliso ea matla ka block, le histori ea alamo-ho tloha sesebelisoa leha e le sefe. Ha ho fumanoa phoso, sistimi e hlahisa tlaleho ea tlhahlobo, 'me lienjineri tsa rona tsa lits'ebeletso li ka lokisa liparamente ba le hole. Sena se fokotsa nako ea ho lokisa (MTTR) ho tloha ka karolelano ea lihora tsa 8 ho ea ho lihora tse ka tlase ho lihora tsa 2.

Bohlale ba Tšebeliso ea Matla

Litaolo tse bohlale li fana ka ho latedisa matla a granular. Mohlala, re ka arola tšebeliso ea li-motor tse sisinyehang, lipompo tsa haeteroliki, le li-conveyors. Bareki ba rona ba sebelisa lintlha tsena ho hlophisa tlhahiso nakong ea litefiso tsa motlakase tse sa sebetseng, ho fokotsa litšenyehelo ka 18%. Ka tlase ke tlhahlobo ea papiso ea matla:

• Mechini ea lefa: 2.1 kWh boloko bo bong le bo bong (400x200x200mm)
• Mochini o laoloang ka bohlale oa QGM: 1.35 kWh ka boloko bo tloaelehileng
• Poloko ea selemo bakeng sa ts'ebetso ea 2-shift: ≈ 85,000 USD (e thehiloeng ho 0.12 USD/kWh)

Ho feta moo, sistimi ea taolo e boloka linako tsa ts'ebetso ea ts'ireletso - ho tlotsa, ho fetola sefa, le ho lekanya ho sisinyeha - e le hore ho se be le tšebeletso e hlophisitsoeng e fetotsoeng. Feme ea rona e koetlisa litsebi tsa bareki ka libuka tse thusoang ke AR, ho netefatsa ho tloaelana le sistimi e phahameng le ho rarolla mathata kapele. Sephetho ke tikoloho ea tlhahiso moo katleho e sa fihlelleheng feela empa e tšoarella ka lilemo.

Ka likarolo tsena tse bohlale, mochini o etsang li-block tsa QGM o fetoha ho feta lisebelisoa; e fetoha letlotlo la maano le ikamahanyang le litlhoko tsa 'maraka ha le ntse le ntlafatsa mohloli o mong le o mong. Bakeng sa bahlahisi ba ikemiselitseng ho lekanya, motsoako oa boiketsetso, ho nepahala ha hydraulic, le taolo e bohlale li theha moea oa tlholisano oo litsamaiso tsa lefa li ke keng tsa tšoana.

Qetello: Tlhahiso ea Bopaki ba Bokamoso ka Mechini ea Next-Gen Block

Joalokaha re se re hlahlobile, karabo ea "mochine oa morao-rao o etsang li-block o ntlafatsa katleho ea tlhahiso joang" e itšetlehile ka ho sebelisana ha li-vibration tse phahameng, li-hydraulic tse bohlale, li-automation tse bohlale, le li-control tse tsamaisoang ke data. Mahlale ana a sebetsa ka kopanelo ho fokotsa linako tsa potoloho, ho fokotsa litšila, ho fokotsa tšebeliso ea matla, le ho eketsa katleho ea lisebelisoa ka kakaretso. Ho Quangong Machinery Co., Ltd., re nehetse lilemo tse fetang 20 ho litharollo tsa boenjiniere tse matlafatsang bahlahisi ho fihlela litlhoko tse ntseng li hola tsa kaho ntle le keketseho e lekanang ea litšenyehelo kapa basebetsi.

Fektheri ea rona e ntse e tsoela pele ho ntlafatsa-ho kopanya ho bolela boleng ba boleng bo tsamaisoang ke AI le mekhoa e tsitsitseng ea ho tsosolosa matla-ho netefatsa hore mochine o mong le o mong oa QGM thibela mochine o lula o le ka pele ho litekanyetso tsa indasteri. Hore na o batla ho ntlafatsa mohala o seng o ntse o le teng kapa ho aha polante e itirisang ka botlalo ho tloha qalong, sehlopha sa rona se fana ka ts'ehetso ea ho tloha pheletsong: ho tloha ho moralo oa moralo ho isa koetlisong ea kamora thekiso. Sephetho ke ntlafatso e ka lekanyetsoang molemong oa hau le phokotso e kholo ea khabone ka boloko e hlahisoang.

U itokiselitse ho fetola katleho ea hau ea tlhahiso? Ikopanye le Quongong Machinery Co., Ltd. kajenoho hlophisa therisano. Litsebi tsa rona li tla sekaseka tlhophiso ea hau ea hajoale, li fane ka ponelopele e ikhethileng ea ROI, le ho bonts'a hore na mochini oa rona o etsang li-block tsa QGM o ka phahamisa matla a hau a tlhahiso joang. Ha re aheng bokamoso bo atlehileng haholoanyane hammoho.
